ANVIL EXPRESS® Parametric Draughting highlights include -

  • Like all parts of ANVIL EXPRESS, the Parametric Draughting module uses familiar Windows menus, dialogs and buttons, to make learning and using it as simple as possible..

  • Allows multi-elevation 2D drawings to be gemetrically modified by dimension changes.

  • Design rules may be built-in by relational expressions, variable calculations, and variable transfers between files.

  • Complete families of parts may be generated from a single drawing.

  • Variable status is assigned automatically to all eligible dimensions.


  • Geometric relationships between elevations can be added automatically or manually, and revoked or replaced at will.


  • Under-constrained geometry highlighted by dynamic Degrees-of-Freedom animation.


  • Parametric status can be added to legacy drawings.

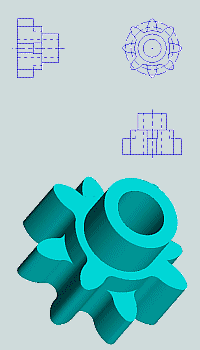

  • The innovative AUTOSNAP 3-D geometry parser can create an associated solid model from the drawing.
